Thông tin chi tiết sản phẩm:
|
| Người mẫu: | RNN1212D | Bộ xử lý: | ADI SHARC 21569 @1GHz |
|---|---|---|---|
| Tốc độ lấy mẫu: | 48kHz | Độ sâu bit: | 24 bit |
| THD+N: | .000,002% | Phạm vi động: | ≥113dB |
| Làm nổi bật: | Dante DSP audio processor,conference room audio controller,drag-and-drop DSP control |
||

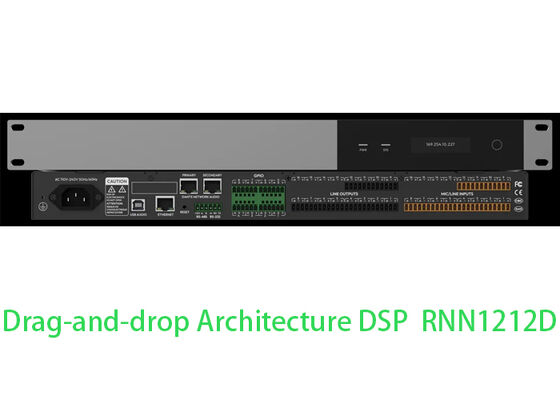

The RNN1212D Dante DSP Processor is a high-performance 12x12 audio matrix processor designed for conference
rooms, boardrooms, education spaces, hotels, and commercial audio projects. Powered by the advanced ADI SHARC
processor, it delivers ultra-stable performance with professional-grade sound quality.
Featuring Dante / AES67 network audio, built-in AEC acoustic echo cancellation, adaptive filters, FIR processing,
and drag-and-drop DSP programming, the RNN1212D allows installers and engineers to deploy projects faster and smarter.
With dual-machine hot backup, RS232 / RS485 / UDP control, and 48V phantom power support, this conference room DSP processor ensures reliable operation for mission-critical environments.
| Item | Specification |
|---|---|
| Model | RNN1212D |
| Analog I/O | 12 Input / 12 Output |
| Dante / AES67 | 32 x 32 |
| Processor | ADI SHARC 21569 @1GHz |
| Sampling Rate | 48kHz |
| Bit Depth | 24Bit |
| THD+N | ≤0.002% |
| Dynamic Range | ≥113dB |
| Phantom Power | 48V Max |
| Frequency Response | 20Hz~20kHz |
| Control Protocol | RS232 / RS485 / UDP |
| Backup Function | Dual Machine Hot Backup |
| Dimensions | 482 x 260 x 44mm |
Simple visual programming for faster project setup.
Seamless integration with modern AV-over-IP systems.
Crystal-clear speech reinforcement for conferencing.
Automatic switchover for uninterrupted operation.
Supports RS232, RS485, UDP remote control.
Direct support for professional microphones.
Dante DSP Processor Audio Matrix Processor Conference Room DSP | Drag-and-Drop Smart Control
