| Name: | WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer | SDI input Rate: | 143Mbps~2.97Gbps |
|---|---|---|---|
| Power supply: | 100-240V/AC 50/60Hz | Power Rating: | 25W-150W, According to host type |
| Operating Temperature: | 0℃~50℃ without condensation | Working Humidity: | 20%~70%RH |
Product Introduction
Winlink SDI 4-Screen WL-MVP9104 is a professional-grade multi-picture multi- viewer,
which supports 4-CH SDI input, 4-CH SDI loop output, 2-CH SDI multi-screen output, and
1-CH HDMI multi-screen output. The device is configured through the keypad, and supports
single-screen full-screen, PIP, POP, and four-screen segmentation.
The device supports remote network upgrade and PC software control.
Specification:
| Name | WL-MVP9104 SDI 4- Screen Multi-viewer | |
|
SDI Input |
Input Signal | SDI HD serial digital video signal |
| Rate | 143Mbps~2.97Gbps | |
| Connector | BNC complies with IEC169-8 | |
| Reflection loss | >15dB 5MHz~3GHz | |
| Signal amplitude | 800mV±10% | |
| Impedance | 75Ω | |
|
Balance |
100m Belden 1694AHD | |
| 200m Belden 8281AHD | ||
|
SDI Output |
Output Signal | HD-SDI HD serial digital video signal |
| Connector | BNC complies with IEC169-8 | |
| Reflection loss | >15dB 5MHz~3GHz | |
| Signal amplitude | 800mV±10% | |
| Impedance | 75Ω | |
| Up/Downtime | 0.6ns±100ps | |
| DC offset | 0V±0.5V | |
| Clock recovery | Auto output optional | |
| Overshoot | <5% | |
| Jitter | <0.2Ul | |
|
HDMI Output |
Output Signal | Standard HDMI signal |
| Rate | 270Mbps~2.97Gbps | |
| Signal amplitude | 800mV±10%(100R) | |
| Impedance | 100Ω | |
|
AUDIO |
Input | 1 set of XLR balanced audio cannon input/1 channel analog audio input |
| Output | 1 channel analog audio output | |
| Response frequency | 550-3.6KHz, < +/-3dB | |
| THD | < 3% | |
| S/N | > 50dB | |
|
Control Parameter |
Local control | button (front panel) |
| Serial control | RS232 | |
| Connection port | RJ45 standard network interface (UDP/HTTP) | |
| Control software | WINDOWS (customizable IOS/Android) | |
|
Optional components |
Central control keyboard | |
|
General Parameters |
Power supply | 100-240V/AC 50/60Hz |
| Power Rating | 25W-150W, According to host type | |
| Size | Half 1U (standard power supply) | |
| Control Panel | Yes | |
| Weight | 2.1KG | |
|
Operating Temperature |
0℃~50℃ without condensation | |
| Storage Temperature | -20℃~75℃ | |
| Working Humidity | 20%~70%RH | |
| Storage Humidity | 0%~90%RH, No condensation |

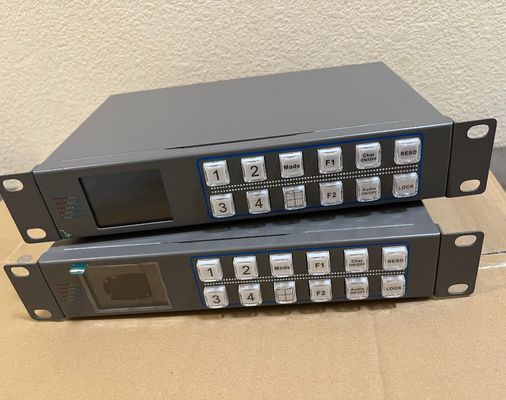

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer
